Eagle 10.5mm Ignition Spark Plug Leads Fits V8 Holden 90° Distributor & 180° Spark Plug Boots (Blue Mtr) 4.2-5.0 HEI - Around Rocker Cover - BLUE - Includes Hi-temp separator kit and mounting system

Holden V8 Engine, low-resistance, high voltage core, suits petrol & LPG engines. Made in Australia.

EAGLE 10.5mm FEATURE A STAINLESS STEEL FERRITE SPIRAL CORE SILICON IGNITION LEADS

SPECIFICATIONS:

• Holden 4.2-5.0
• 10.5mm High Performance Ignition Leads
• 90 degree dist. boots (HEI) / 180 degree spark plug boots
• Includes Australian made Zytel high temp separator kit and 4 mounts, including stainless bolts and screws. Choose from vertical or horizontal mounts

This is for a set of Blue leads, however Black and Red are available upon request.

These are the next generation in high performance and racing ignition lead technology as used by major race teams worldwide. Designed for all ignition systems, including very high output aftermarket ignition systems, Eagle 10.5mm leads deliver exceptional performance in the most demanding applications.

The Eagle 10.5mm leads feature three layers of high-temperature silicone jackets, allowing them to carry secondary voltages in excess of 70,000 volts while emitting virtually zero RFI. This ensures compatibility with virtually all modern hi-tech onboard computer systems and electronic engine management systems.
From V8 Supercars and street performance vehicles to rally cars, circuit racers, touring cars, power boats, and even 5,500HP top fuel dragsters, Eagle ignition leads are trusted by enthusiasts and professional racers alike for their proven quality, reliability, and performance.

Although we try to keep the most popular Eagle lead sets in stock, the extensive range of applications, colours, and configurations makes it impossible to stock every combination. Eagle ignition leads are available in Blue, Red, and Black, with custom lead sets also available upon request.

ULTRA LOW RESISTANCE SPIRAL WOUND COPPER OVER FERRITE COATED KEVLAR INNER CORE:
Eagle Eliminator Series ignition leads utilise an ultra-low resistance 325 ohms per metre spiral wound copper conductor over a ferrite coated Kevlar core. This advanced design ensures maximum voltage delivery to the spark plugs for improved combustion efficiency, stronger spark energy, smoother engine operation, and enhanced performance throughout the RPM range.

The conductor is reinforced with a technologically advanced nylon tape layer that provides exceptional tensile strength and superior terminal pull-off resistance. Three layers of 260°C high-temperature silicone insulation provide outstanding heat resistance and electrical protection in the harshest engine bay environments.

Features:
• Designed for all ignition systems, including high-output aftermarket ignition systems.
• Ultra-low 325 ohms per metre resistance spiral wound copper over ferrite coated Kevlar inner core.
• Three-layer 260°C high-temperature silicone jacket construction.
• Virtually zero RFI emission for compatibility with modern electronic systems.
• Finger Grip Spark Plug Boot Design for easy installation and removal (where applicable).
• Computer-aided boot design replicates terminal shape to minimise the risk of crossfire.
• Exceptional durability using premium high-temperature silicone compounds.
• Custom lead sets available upon request.
• Made in Australia.

Terminal Features:
• High memory spring steel retaining clip for positive terminal locking at all RPM's.
• Precision engineered terminal design ensures secure electrical connection.
• Superior retention characteristics for maximum reliability in high-performance applications.

Cable Features:
• Ultra-low resistance spiral wound copper conductor over ferrite coated Kevlar core for maximum voltage transfer.
• Nylon tape reinforcement provides exceptional tensile strength and terminal pull-off resistance.
• Triple-layer 260°C high-temperature silicone insulation for superior dielectric protection.
• Excellent resistance to heat, vibration, oil, fuel, and engine bay contaminants.
• Designed to deliver maximum ignition performance while maintaining long service life.

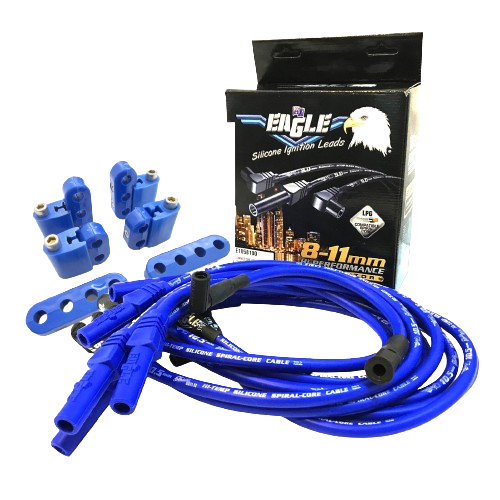

Your lead set may differ to that shown in the above images. When your lead set is in stock, we aim to dispatch your order within 24 hours. If your set needs to be manufactured or ordered from Eagle, please allow additional time for production and delivery. If your order is urgent, please contact us prior to purchase.
