Class AB 4-Channel 880 Watts Car Audio Amplifier

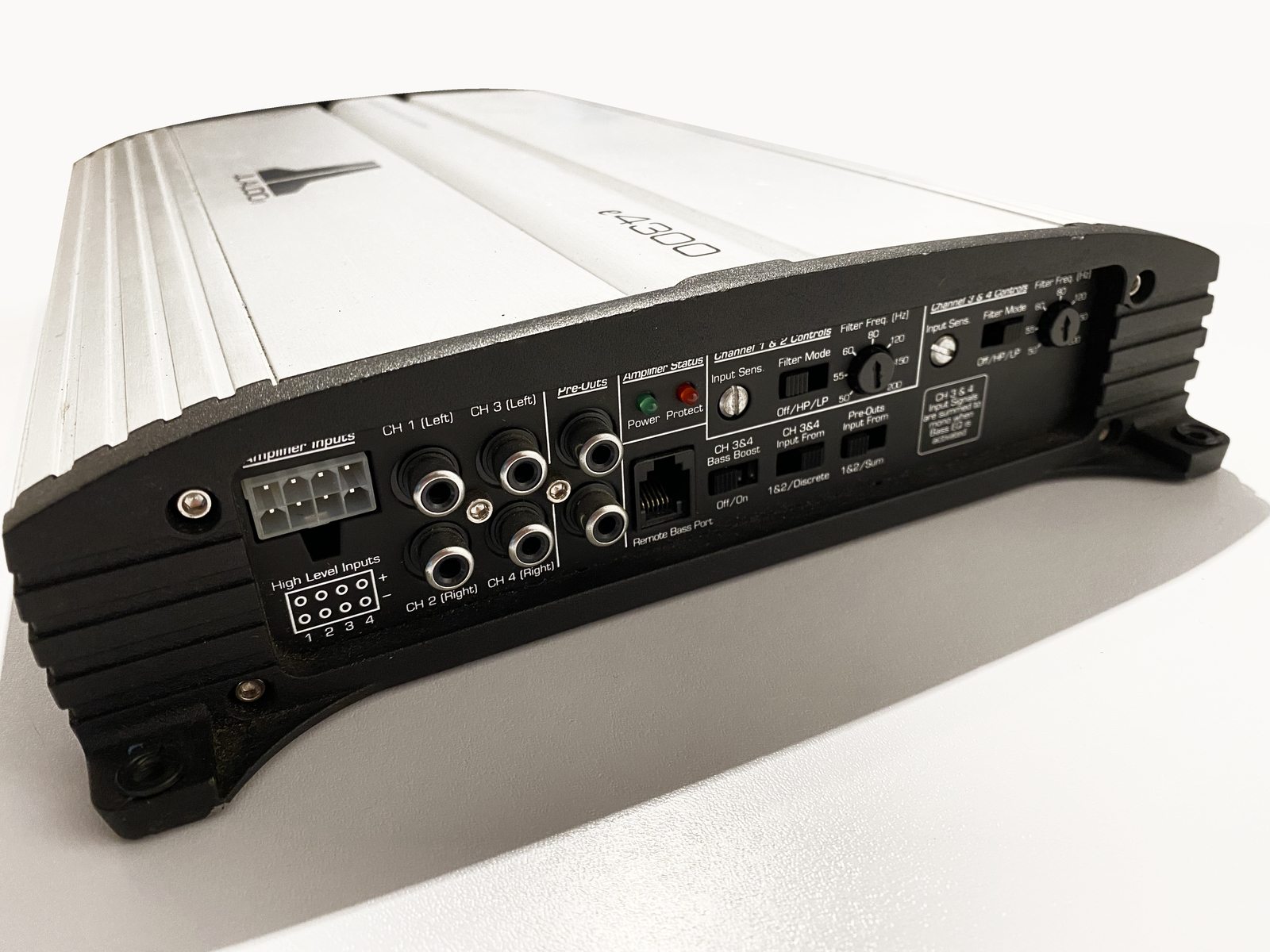

The JL Audio 4300 is a four channel full range amplifier utilizing Absolute Symmetry Class AB technology for all channels. Used- fitted to a show car that travelled 500kms.

Absolute Symmetry Class AB Circuit Differential,

Noise Cancelling Input Topology: RCA jack inputs(low-level) and multi-pin jack(high-level)

On-board crossover: State-variable, 12dB/octave Butterworth with continuously variable cutoff frequency selection from 50-200 Hz.

Configurable as Low-Pass or High-Pass Preamp Output: Pass-through type CEA-2006

Compliant RMS Power Rating (14.4V): Max Power Output: 880 watts Absolute Symmetry™ Class A/B Circuit Remote bass level ready (JL Audio RBC-1 remote level control required and sold separately)

LED power and protection indicators Tuned Bass EQ (0-6 dB bass boost at 48 Hz)

Differential-Balanced Input Topology (For superior noise immunity) Pass-through type Preamp Output Variable low-pass filter (50-200 Hz, 12 dB/octave) Variable high-pass filter (50-200 Hz, 12 dB/octave)

Frequency response: 10-25000 Hz

Dimensions: 13.8" L x 9.25" W x 2.5" H

4-gauge power and ground leads recommended. 4 ohms: 70 watts x 4 chan. 2 ohms: 110 watts x 4 chan. Bridged (4 ohms): 220 watts x 2 chan. Bridged (8 ohms): 140 watts x 2 chan. RMS Power Rating (12.5V): 4 ohms: 45 watts x 4 chan. 2 ohms: 75 watts x 4 chan. Bridged (4 ohms): 150 watts x 2 chan. Bridged (8 ohms): 90 watts x 2 chan. Frequency Response: 10 - 25kHz Damping Factor: >200 @ 4 Ohms / 50Hz, >100 at 2 Ohms/50Hz S/N Ratio: >104 dB referred to rated power(A-weighted, 20Hz-20kHz noise bandwidth) Input Range: 200mV - 8V RMS Bass EQ: +6dB Fixed Frequency, Fixed 'Q' with port for optional remote bass control Slew Rate: +- 22V/us Dimensions: 13.8" L x 9.25" W x 2.36" H Fuse Rating:40 amps
