Eagle 9mm Ignition Spark Plug Leads fits V8 Ford Carburetor OHV 1969-85 with Blue Sleeves

Ford 8cyl 1969-85 Engine, low-resistance, high voltage core, suits petrol & LPG engines. Made in Australia.

EAGLE 9mm FEATURE A STAINLESS STEEL FERRITE SPIRAL CORE SILICON IGNITION LEADS

COMPATIBLE VEHICLES:

• Bronco 5.8L Carb - OHV 1981-85
• F100, F250, F350 5.8L Carb - OHV 1974-85
• Fairlane ZD, ZF, ZG, ZH, ZJ, ZK 4.9L Carb - OHV 1970-83
• Fairlane ZD, ZF, ZG, ZH, ZJ 5.8L Carb - OHV 1970-82
• Falcon XW 302ci, 351ci Carb - OHV 1969-70
• Falcon XY 302ci, 351ci Carb - OHV 1970-72
• Falcon XA 302ci, 351ci Carb - OHV 1972-73
• Falcon XB 302ci, 351ci Carb - OHV 1973-76
• Falcon XC 4.9L, 5.8L Carb - OHV 1976-79
• Falcon XD 4.9L Carb - OHV 1979-82
• Falcon XE 4.9L, 5.8L Carb - OHV 1982-84
• LTD 351ci Carb - OHV 1973-76
• LTD 5.8L Carb - OHV 1976-79
• LTD FC 5.8L Carb - OHV 1979-82
• LTD FD 4.9L, 5.8L Carb - OHV 1982-83
• Over Rocker Covers - 90° Distributor & 180° Spark Plug Boots 302-351C STD
• Over Rocker Covers - 90° Distributor & 180° Spark Plug Boots 351W STD

This is for a set of Blue leads; however, Black and Red are available upon request.

The Eagle Eliminator Ignition Leads are a high-performance replacement ignition lead set.

Eliminator leads are fitted with our 1300-ohm-per-meter ferrite spiral core conductor, which, by induction design delivers peak voltage to the plugs ensuring almost complete combustion for super quick starts and smooth running.

More ignition power means improved combustion efficiency so you can get better economy and more power across the RPM range. The patented dual-mag design incorporates two premium spiral core magnetic suppression core conductors, which are protected by a layer of braided fiberglass and then coated in hi-temp silicone to resist the harshest of under-bonnet conditions.

Features:

Boot & Tube Assembly Features:

• Hi-temp Silicone Well Cover Boot
• PVT insulator tube insulates plug terminal to prevent high voltage crossover
• Hi-temp Silicone Tip Seal.

Terminal Features:

• High-memory spring steel retaining clip for positive terminal locking at all RPMs.
• The extra-long .51 mm base offers minimal heat transfer from the plug tip to the inner conductor. This ensures maximum cable life.
• Triple cable retaining ribs and "W"-shaped crimps ensure superior cable retention.

Cable Features

• Simply "the best" stainless steel wound ferrite-coated spiral core conductor yields ultra-low resistance, ensuring peak voltage delivery to the spark plugs.
• High-dielectric silicone inner jacket.
• Technologically advanced nylon tape adds tensile strength.
• 260°C High Temp. The modified silicone outer jacket ensures complete protection against heat and engine bay contaminants.

Although we try to keep all of the popular combinations of Eagle ignition leads on the shelf, it is impossible to keep them all on the shelf, especially when you take into account that Eagle makes their sets in 5.0mm, 7.0mm, 8.0mm, 9.0mm, 10.5mm and 11.0mm silicone-coated cable in 3 different colours. Then some engines have different-length sets that reach under the exhaust manifold, over the valve cover, and around the valve cover. On top of that, we need to account for different spark plug boots and standard ignition distributor boots (female cap posts), HEI (male disi cap posts), and MSD boots.

When we have your leads in stock, we try to send the order out within 24 hours. If your set needs to be ordered from Eagle, please allow 3-10 days before shipping depending on Eagle's production times. Please let us know if your set is urgent.

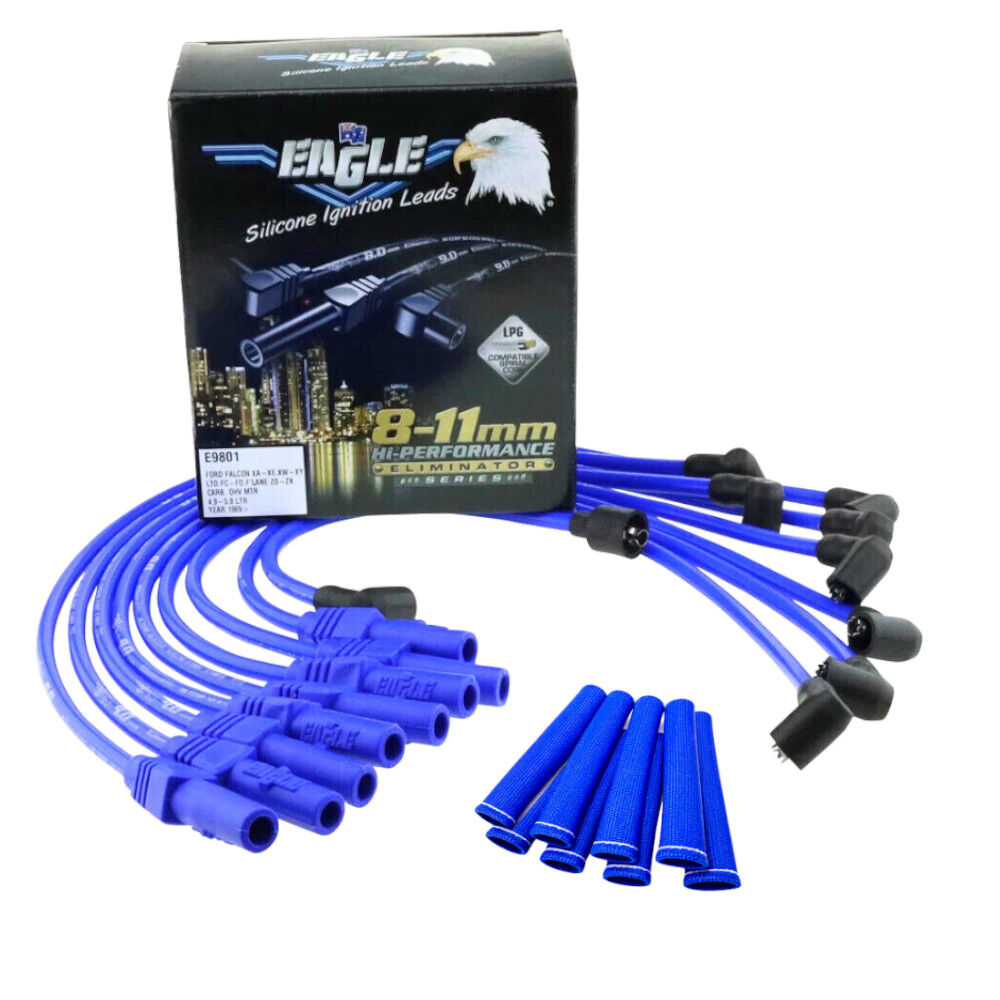

Your lead set may differ from that shown in the above images
