Eagle 9mm Ignition Spark Plug Leads Fit 8cyl Ford 90° Distributor & 180° Spark Plug Boots 302-351 Cleveland, 351 Windsor HEI Around Rocker Covers includes High Temperature Mounting Bracket - BLUE

Ford 8cyl 90°Dist & 180°SPB 302-351C, 351W HEI Engine, low-resistance, high voltage core, suits petrol & LPG engines. Made in Australia.

EAGLE 9mm FEATURE A STAINLESS STEEL FERRITE SPIRAL CORE SILICON IGNITION LEADS

COMPATIBLE VEHICLES:

• 90° Distributor & 180° Spark Plug Boots 302-351C HEI
• 90° Distributor & 180° Spark Plug Boots 351W HEI

This is for a set of blue leads, however red and black are available upon request.

This lead set is the correct length to use with our supplied special Zytel Hi-Temp lead brackets. These are the best brackets to use to ensure a tidy engine bay. It also ensures that your expensive leads don't fall onto your extractors or headers.

The Eagle Eliminator Ignition Leads are a high performance replacement ignition lead set.

Eliminator Leads are fitted with our 1300 ohms per metre Ferrite Spiral Core conductor which by induction design delivers peak voltage to the plugs ensuring almost complete combustion for super quick starts and smooth running.

More ignition power means improved combustion efficiency so you can get better economy and more power across the RPM range. The Patented Dual-Mag design incorporates two premium Spiral Core magnetic suppression core conductors which are protected by a layer of braided fiberglass and then coated in hi-temp silicone to resist the harshest of under bonnet conditions.

Features:

Boot & Tube Assembly Features:

• Hi-temp Silicone Well Cover boot
• PVT insulator tube insulates plug terminal to prevent high voltage crossover
• Hi-temp Silicone Tip Seal.

Terminal Features:

• High Memory spring steel retaining clip for positive terminal locking at all RPM'S.
• Extra long .51mm base offers minimal heat transfer from plug tip to inner conductor. This ensures maximum cable life.
• Triple cable retaining ribs and "W" shaped crimp ensure superior cable retention.

Cable Features

• Simply "the best" Stainless Steel wound Ferrite coated Spiral Core conductor yields ultra low resistance ensuring peak voltage delivery to the spark plugs.
• High Dielectric Silicone inner jacket.
• Technologically advanced nylon tape adds tensile strength.
• 260°C High Temp. modified Silicone outer jacket ensures complete protection against heat and engine bay contaminants.

These premium quality ignition lead separators keep your expensive ignition and spark plug leads well away from your extractors or headers as well as help to make a great looking engine bay.

• Supplied with stainless steel hardware
• Modular design means you can decide how they should be fitted
• This kit includes 6 mounts and 6 vertical separators ( 2 x 2 hole, 2 x 3 hole and 2 x 4 hole)

These brackets sit Vertically next to the valve covers. Horizontal mount kits are also available. This is where the separators stick out from the valve covers.

Although we try to keep all of the popular combinations of Eagle ignition leads on the shelf, it is impossible to keep them all on the shelf especially when you take into account that Eagle make their sets in 5.0mm, 7.0mm, 8.0mm, 9.0mm, 10.5mm and 11.0mm silicone coated cable in 3 different colours. Then some engines different length sets that reach under exhaust manifold, over the valve cover and around the valve cover sets. On top of that we need to account for different spark plug boots and standard ignition distributor boots (female cap posts), HEI (male disi cap posts) and MSD boots.

When we have your leads in stock, we try to send the order out within 24 hours. If your set needs to be ordered from Eagle, please allow 3-10 days before shipping depending on Eagles production times. Please let us know if your set is urgent.

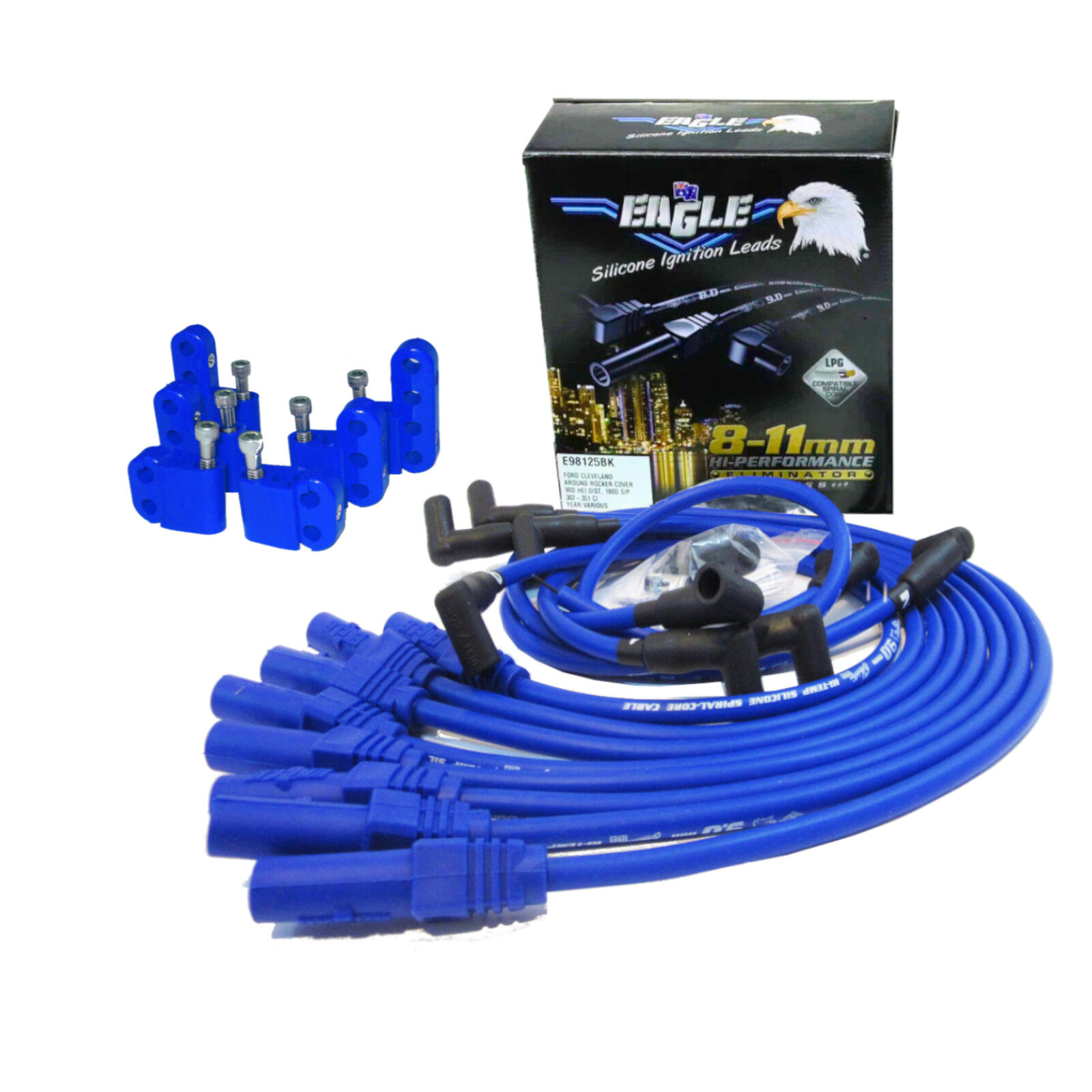

Your lead set may differ to that shown in the above images
