Eagle 7mm Ignition Spark Plug Leads Fit 8cyl Mercedes Benz

WIRE CORE LEAD with RESISTORS

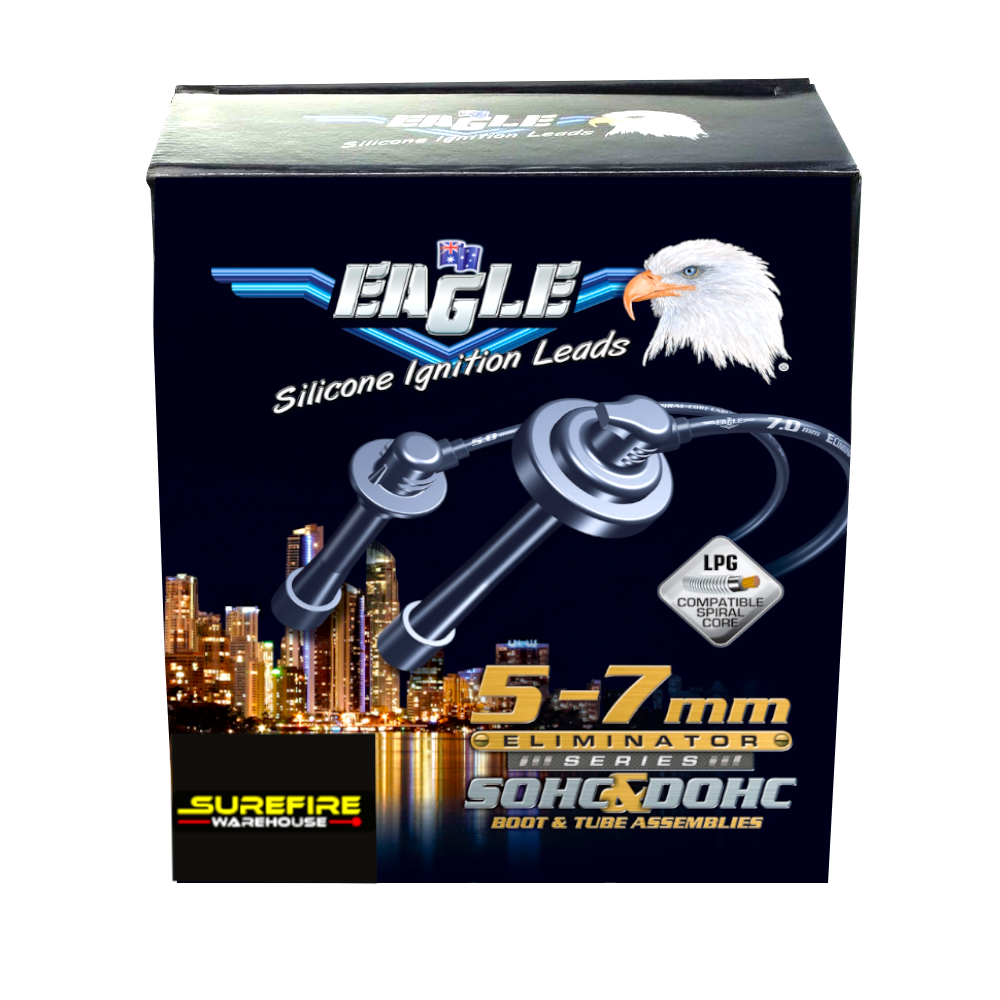

This listing is for a set of Eagle high tech Eagle 7mm Ignition or Spark Plug Leads

Premium quality upmarket replacement lead set for vehicle’s having SOHC & DOHC motors fitted with Boot & Tube technology.

COMPATIBLE VEHICLES:

• 280SE/3.5, SEL/3.5 (W116) 3.5L FI SOHC 1969-72
• 300SEL/3.5 (W109) 3.5L FI SOHC 1967-72
• 350SE, SL, SLC (W116/R107) 3.5L FI SOHC 1973-76
• 450SE, SEL, SLC (W116) 4.5L FI SOHC 1973-76

Lead Diameter:    7mm

Colour:             Black only

Application:     Most passenger, Commercial & 4WD vehicles fitted with SOHC & DOHC motors.

Description:     A premium quality ignition lead set specifically designed as an upmarket replacement for SOHC and DOHC motors fitted with Boot and Tube component technology.

Being Eliminator series, they are fitted with our 1300 ohms per metre Ferrite Spiral Core conductor which by induction design delivers peak voltage to the plugs ensuring almost complete combustion for super quick starts and smooth running.

Cable Standards:    Tested to ISO 3808 Standards.

Boot & Tube Assembly Features:

• Hi-temp Silicone Well Cover boot
• PVT insulator tube insulates plug terminal to prevent high voltage crossover
• Hi-temp Silicone Tip Seal.

Terminal Features:

• High Memory spring steel retaining clip for positive terminal locking at all RPM'S.
• Extra long .51mm base offers minimal heat transfer from plug tip to inner conductor. This ensures maximum cable life.
• Triple cable retaining ribs and "W" shaped crimp ensure superior cable retention.

Cable Features:

• 24 strands of 0.20 (24 / 0.20) Nickel Coated Copper conductor giving you reliability.
• 3 (± 1) OHMS resistance per metre (approx) to maximise your spark.
• 260°C silicone on silicone insulating jackets with fibreglass braid for tension strength.
• 200°C heavy duty silicone spark plug boots fitted with internal resistors (where applicable)
• Silicone or E.P.D.M. distributor and coil boots fitted with internal resistors (where applicable)

Please Note :   Above specifications may vary due to technological advances at manufacturer’s discretion
