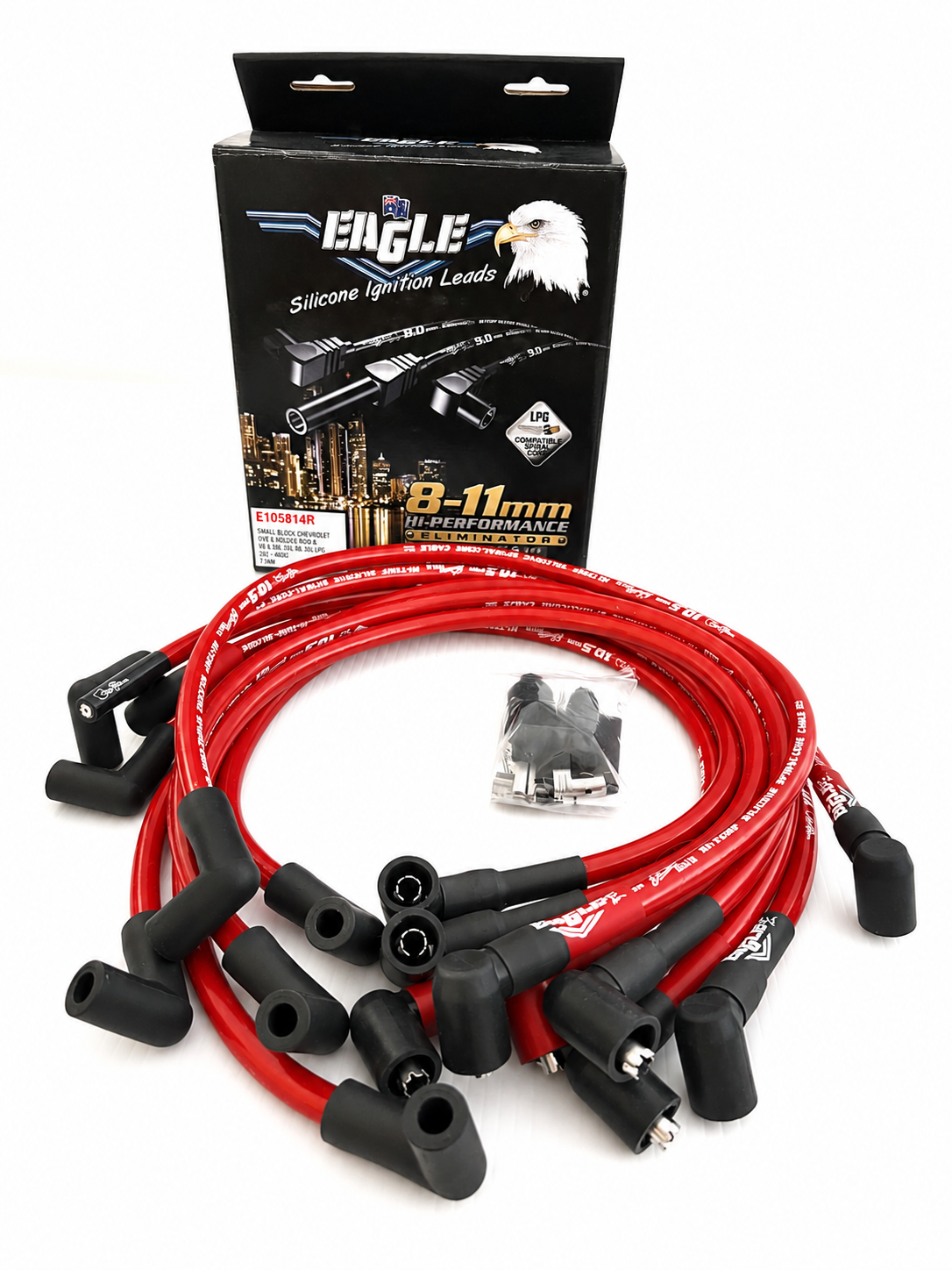

Eagle 10.5mm Ignition Spark Plug Leads Fits V8 Small Block Chevrolet 283-400 STD Over Rocker Cover - RED

SB Chev V8 Engine, low-resistance, high voltage core, suits petrol & LPG engines. Made in Australia.

EAGLE 10.5mm FEATURE A STAINLESS STEEL FERRITE SPIRAL CORE SILICON IGNITION LEADS

SPECIFICATIONS:

• SB Chev Chevrolet 283, 307, 327, 350, 400
• 10.5mm High Performance Ignition Leads
• Shorter set where leads run over the valve covers
• We also stock the longer lead length for leads to reach around the front of the valve covers
• 90 degree dist. boots (std. cap - not HEI) / 90 degree spark plug boots

This is for a set of Red leads, however Blue and Black are available upon request.

These are the next generation in high performance and racing ignition lead technology as used by major race teams around the world. Designed for all ignition systems, including very high output aftermarket ignition systems such as Crane, MSD and ICE systems.

The Eagle 10.5mm leads feature three layers of high-temperature silicone jackets, allowing them to carry secondary voltages in excess of 70,000 volts while emitting virtually zero RFI. This makes them fully compatible with virtually all modern hi-tech onboard computer systems.

Although we try to keep all of the popular combinations of Eagle ignition leads on the shelf, it is impossible to stock every variation. Eagle manufactures lead sets in 9.0mm, 10.5mm and 11.0mm silicone-coated cable, available in three colours. There are also under exhaust manifold, over valve cover and around valve cover configurations, along with various spark plug boot styles and distributor boot options including Standard (female cap posts), HEI (male cap posts) and MSD boots.

When we have your leads in stock, we aim to dispatch your order within 24 hours. If your lead set needs to be ordered from Eagle, please allow approximately 3–10 days before shipping depending on Eagle's production schedule. If your order is urgent, please let us know.

SPIRAL WOUND COPPER OVER FERRITE COATED KEVLAR INNER CORE:

Eagle 10.5mm ignition leads are fitted with an ultra-low resistance 325 ohms per metre Spiral Wound Copper over Ferrite Coated Kevlar conductor, designed to deliver maximum ignition voltage directly to the spark plugs for faster starts, smoother engine operation and more complete combustion.

Improved ignition efficiency provides enhanced combustion performance, resulting in better throttle response, improved fuel economy and increased power throughout the RPM range. Reinforced with a Nylon Tape layer for exceptional tensile strength and protected by three 260°C high-temperature silicone jackets, these leads are built to withstand the harshest under-bonnet conditions.

Features:

• Three-layer 260°C High Temperature Silicone jackets provide superior insulation and heat resistance.
• Ultra-low 325 ohms per metre Spiral Wound Copper over Ferrite Coated Kevlar inner core.
• Virtually zero RFI for compatibility with modern electronic ignition and onboard computer systems.
• Nylon Tape reinforcement provides exceptional tensile strength and terminal pull-off resistance.
• Finger Grip Spark Plug Boot Design ensures easy installation and removal (where applicable).
• Computer Aided Boot Design replicates the terminal's shape to minimise the chance of crossfire.
• Premium High Temperature Silicone compounds provide exceptional durability and long service life.
• Available in Blue, Red or Black.
• Custom lead sets available by request.
• Made in Australia.

Terminal Features:

• High Memory spring steel retaining clip for positive terminal locking at all RPMs.
• Precision-engineered terminals provide secure electrical contact and maximum reliability.
• Reinforced crimp design ensures superior cable retention under high vibration and performance conditions.

Cable Features:

• Spiral Wound Copper over Ferrite Coated Kevlar conductor delivers ultra-low resistance and maximum ignition energy to the spark plugs.
• Nylon Tape reinforcement increases cable strength and durability.
• Triple-layer 260°C High Temperature Silicone insulation provides outstanding heat resistance and dielectric protection.
• Resistant to heat, oil, moisture and harsh engine bay contaminants for long-lasting performance.

Your lead set may differ to that shown in the above images. When your lead set is in stock, we aim to dispatch your order within 24 hours. If your set needs to be manufactured or ordered from Eagle, please allow additional time for production and delivery. If your order is urgent, please contact us prior to purchase.
